Description
If the upper part of your head tube has an inner diameter of 56 mm and icr (integrated cable routing), you can generally use this headset.

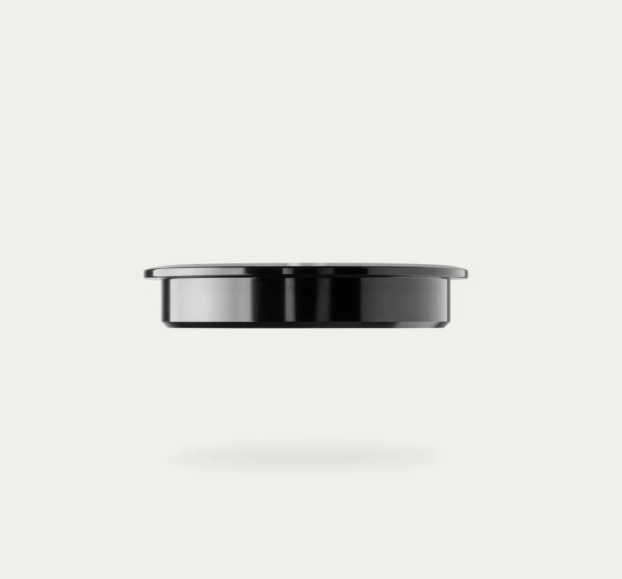

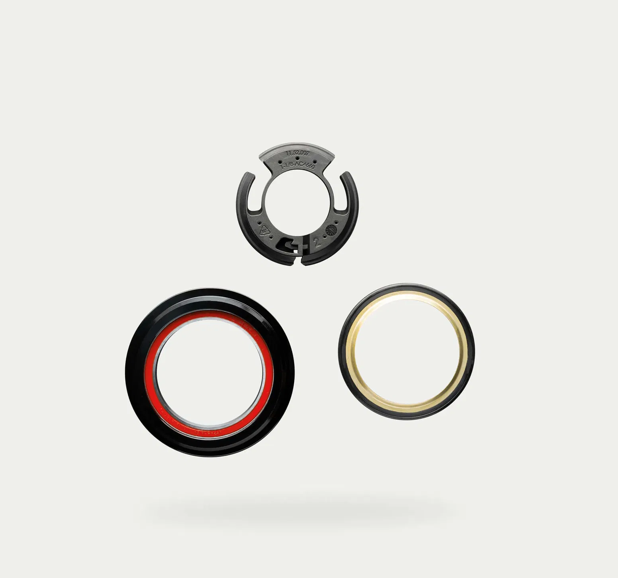

⦁ Upper zs56 headset bearing pressed into an alloy bearing cup
⦁ Compression ring with icr (acrylic) for a 1 1/8″ steering tube
⦁ Press-in diameter (ID): 56 mm
⦁ Outer diameter (OD): 62 mm
⦁ Overall height (H): 8 mm
⦁ Offset (D): 7 mm
⦁ Bearing included 42 x 52 x 7 45/45
