Description
|

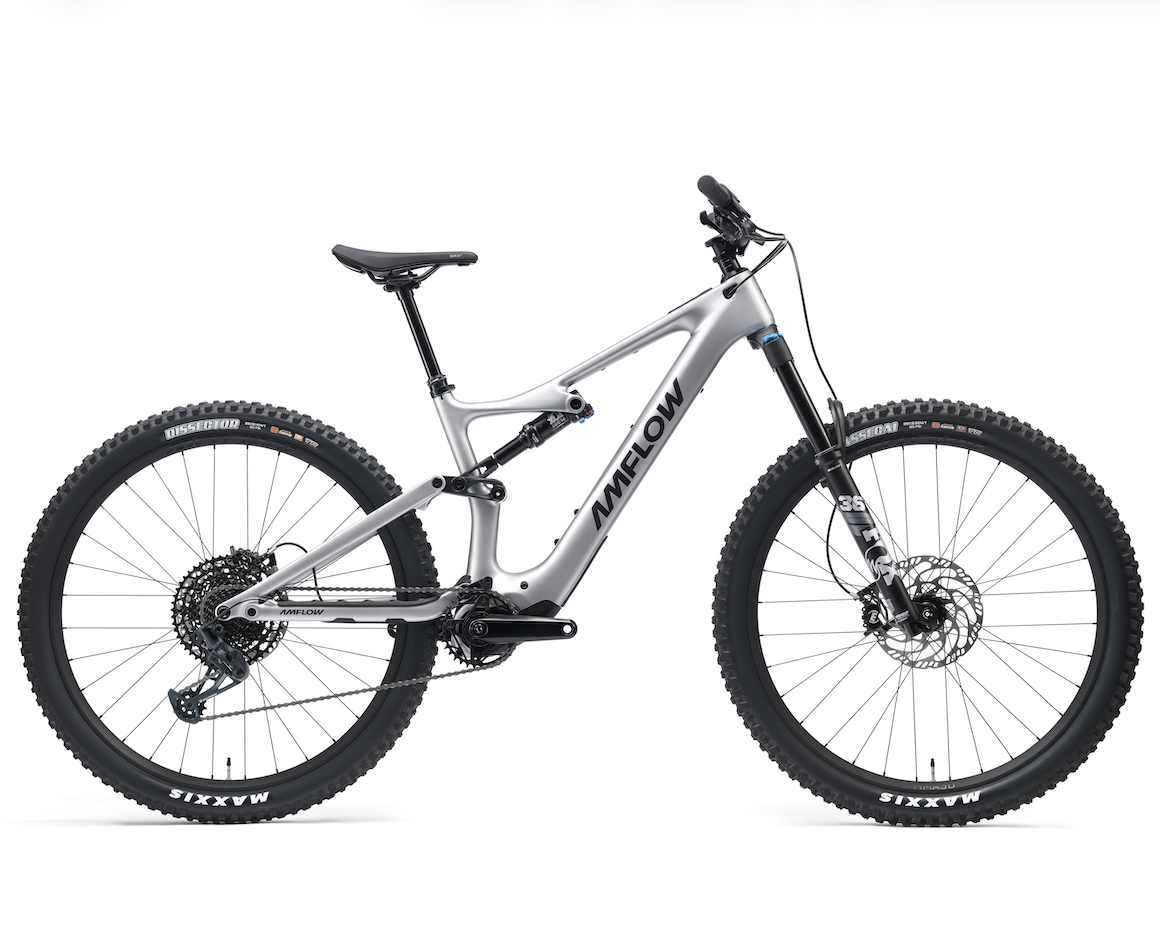

Amflow PL Carbon (800Wh) All-mountain 150mm 29 M1
|
|
|
Frame
|
Amflow PL Carbon Frame
|
|
Satin Silver
|
|
|
150mm rear travel
|
|
|
Compatible with 27.5″ and 29″ rear wheels
|
|
|
E-Bike System
|
Avinox M1 Drive Unit: 105 N·m
|
|
Avinox Screen: 2-inch OLED Control Display
|
|
|
Avinox Integrated Battery: 800Wh
|
|
|
Avinox Wireless Controllers: Right and left sides
|
|
|
Avinox Fast Charger: 12A/508W
|
|
|
Rear shock
|
FOX Float Performance
|
|
Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever
|
|
|
Fork
|
FOX 36 Performance
|
|
160mm travel, GRIP Damper, 15×110mm, 44mm rake
|
|
|
Transmission
|
Rear Derailleur: SRAM GX Eagle 12-speed
|
|
Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
|
|
|
Shift Levers: SRAM GX Eagle Trigger Shifter｜Single Click
|
|
|
Cassette: SRAM PG-1230, 11-50T
|
|
|
Chain: SRAM NX Eagle
|
|
|
Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
|
|
|
Brakes
|
Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)
|
|
Wheels
|
Amflow HMA-30
|
|
Rims: Alloy, 29”, 30mm internal width, 32H, tubeless ready
|
|
|
Spokes: SAPIM E-Light J-bend
|
|
|
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
|
|
|
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T
|
|
|
Tires
|
Front: Maxxis Assegai MaxxTerra 29×2.5″ WT 3C EXO E-25 TLR
|
|
Rear: Maxxis Dissector MaxxTerra 29×2.4″ WT 3C EXO+ E-25 TLR
|
|
|
Handlebar
|
Amflow Enduro Alloy Handlebar
|
|
35mm rise, 800mm wide
|
|
|
5-degree upsweep, 9-degree backsweep
|
|
|
Grips
|
Amflow Enduro Grips
|
|
Stem
|
Amflow Enduro Stem, One-piece CNC
|
|
Length: 35mm
|
|
|
Clamping diameter: 35mm
|
|
|
Saddle
|
Selle Royal SRX Plus
|
|
Seatpost
|
KS Rage-i
|
|
M: 150mm
|
|
|
L: 170mm
|
|
|
XL/XXL: 190mm
|
|
|
Accessories
|
Quick Start Guide
|
|
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
|
|
|
Shock Pump
|
|
|
Front and Rear Lights
|
